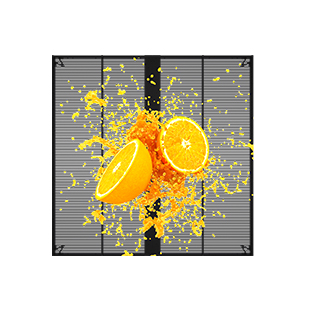

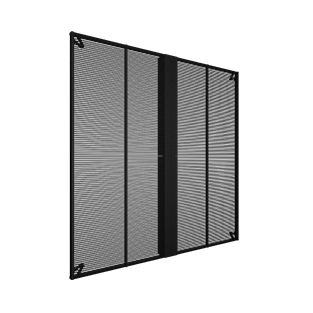

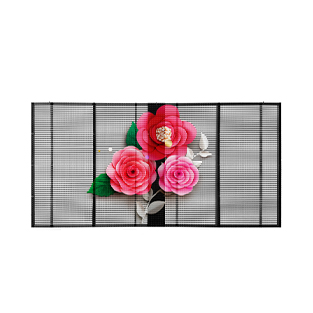

This positive-emitting display can be used indoors or outdoors. Its surface-mounted front-emitting LEDs provide fine pixel pitch and high resolution. The relatively fixed cabinet size and integrated power supply design make it easy to install, maintaining more than 55% transparency for clear and lifelike visual effects.
Widely used for indoor installation, inside commercial display windows or inside lower-level glass curtain walls.
| Classification | Name | Demand | |||||||||
| Technical parameter | Pixel Pitch(mm) | ATI-F-P2.6-5.2 | ATI-F-P2.8-5.6 | ATI-F-P3.125 | ATI-F-P3.91-7.82 | ATI-F-P7.82-7.82 | |||||
| Pixel Density（PX/㎡） | 73728 | 61952 | 102400 | 32768 | 16384 | ||||||
| LED Packing Type | SMD 2020 | SMD 1921 | SMD 2020 | SMD 1921 | SMD 1515 | SMD 1415 | SMD 2020 | SMD 1921 | SMD 2020 | SMD 1921 | |
| Pixel Composition | 1R1G1B | 1R1G2B | 1R1G3B | 1R1G4B | 1R1G5B | ||||||
| Module Size（mm） | 500*125 | 500*125 | 500*62.5 | 500*125 | 500*125 | ||||||
| Module Flatness（mm） | ≤1 mm | ≤1 mm | ≤1 mm | ≤1 mm | ≤1 mm | ||||||
| Module Resolution（Pixel） | 192*24 | 176*22 | 160*20 | 128*16 | 64*16 | ||||||
| Module Pixel | 4608 | 3872 | 3200 | 2048 | 1024 | ||||||
| Module Qty（pcs） | 16 | 16 | 32 | 16 | 16 | ||||||
| PCB | 6-layer with the thickness of 1.6mm | 6-layer with the thickness of 1.6mm | 10-layer with the thickness of 2.0mm | 4-layer with the thickness of 1.6mm | 4-layer with the thickness of 1.6mm | ||||||
| Scanning Mode(S) | 12 | 11 | 9 | 8 | 4 | ||||||
| Transparent rate | ≥65% | ≥70% | ≥55% | ≥75% | ≥75% | ||||||
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | ||||||
| Frame Rate（Hz） | 60 | 60 | 60 | 60 | 60 | ||||||
| Gray Level | 16 | 16 | 16 | 16 | 16 | ||||||
| Cabinet Material | Aluminum profiles | Aluminum profiles | Aluminum profiles | Aluminum profiles | Aluminum profiles | ||||||
| Cabinet Weight（KG/PCS） | 10 | 10 | 10 | 10 | 10 | ||||||
| Cabinet Size(mm) | 1000*1000*75（L*W*H） | 1000*1000*75（L*W*H） | 1000*1000*75（L*W*H） | 1000*1000*75（L*W*H） | 1000*1000*75（L*W*H） | ||||||
| Cabinet Thickness（mm） | 80 | 80 | 80 | 80 | 80 | ||||||
| Cabinet Resolution | 384*192 | 352*176 | 320*320 | 256*128 | 128*128 | ||||||
| IP Rate | IP30 | IP30 | IP30 | IP30 | IP30 | ||||||
| Maintenance Mode | Front or rear maintenance | Front or rear maintenance | Front or rear maintenance | Front or rear maintenance | Front or rear maintenance | ||||||
| Optical characteristic | Brightness（nits） | 600-800/2500-5000 | 600-800/2500-5000 | 600-800/2500-5000 | 600-800/2500-5000 | 600-800/2500-5000 | |||||
| View Angle | Horizontal≥140°,vertical≥140° | Horizontal≥140°,vertical≥140° | Horizontal≥140°,vertical≥140° | Horizontal≥140°,vertical≥140° | Horizontal≥140°,vertical≥140° | ||||||
| Viewing Distance(m) | ≥8 | ≥8 | ≥8 | ≥8 | ≥8 | ||||||
| Contrast Ratio | ‘8000:1 | ‘8000:1 | ‘8000:1 | ‘8000:1 | ‘8000:1 | ||||||
| Electrical parameter | Input Voltage(V) | DC5-3.5/AC85-240 | DC5-3.5/AC85-240 | DC5-3.5/AC85-240 | DC5-3.5/AC85-240 | DC5-3.5/AC85-240 | |||||
| Maximum Power Consumption(W/㎡) | 800 | 800 | 800 | 800 | 800 | ||||||
| Average Power Consumption(W/㎡) | 200 | 200 | 200 | 200 | 200 | ||||||
| Average uninterrupted time(H) | >10000 | >10000 | >10000 | >10000 | >10000 | ||||||
| Usage parameter | Typical LED Lifetime(H) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | |||||
| Working Temperature(°C) | -40-+40 | -40-+40 | -40-+40 | -40-+40 | -40-+40 | ||||||
| Installation | Lifting mount or fixed mount | Lifting mount or fixed mount | Lifting mount or fixed mount | Lifting mount or fixed mount | Lifting mount or fixed mount | ||||||
| Working humidity | 15%-90%RH | 15%-90%RH | 15%-90%RH | 15%-90%RH | 15%-90%RH | ||||||
| Connection | Wireless Connection | Wireless Connection | Wireless Connection | Wireless Connection | Wireless Connection | ||||||
| Certificate | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | ||||||
