This film led display delivers 85%+ transparency with an ultra-slim cabinet thickness 6mm profile at just 6kg/m². Supporting cabinet sizes up to 960×1500mm (3m max length) and 4000cd/m² brightness, it offers exceptional flexibility – bendable, trimmable and fully customizable for diverse design requirements.

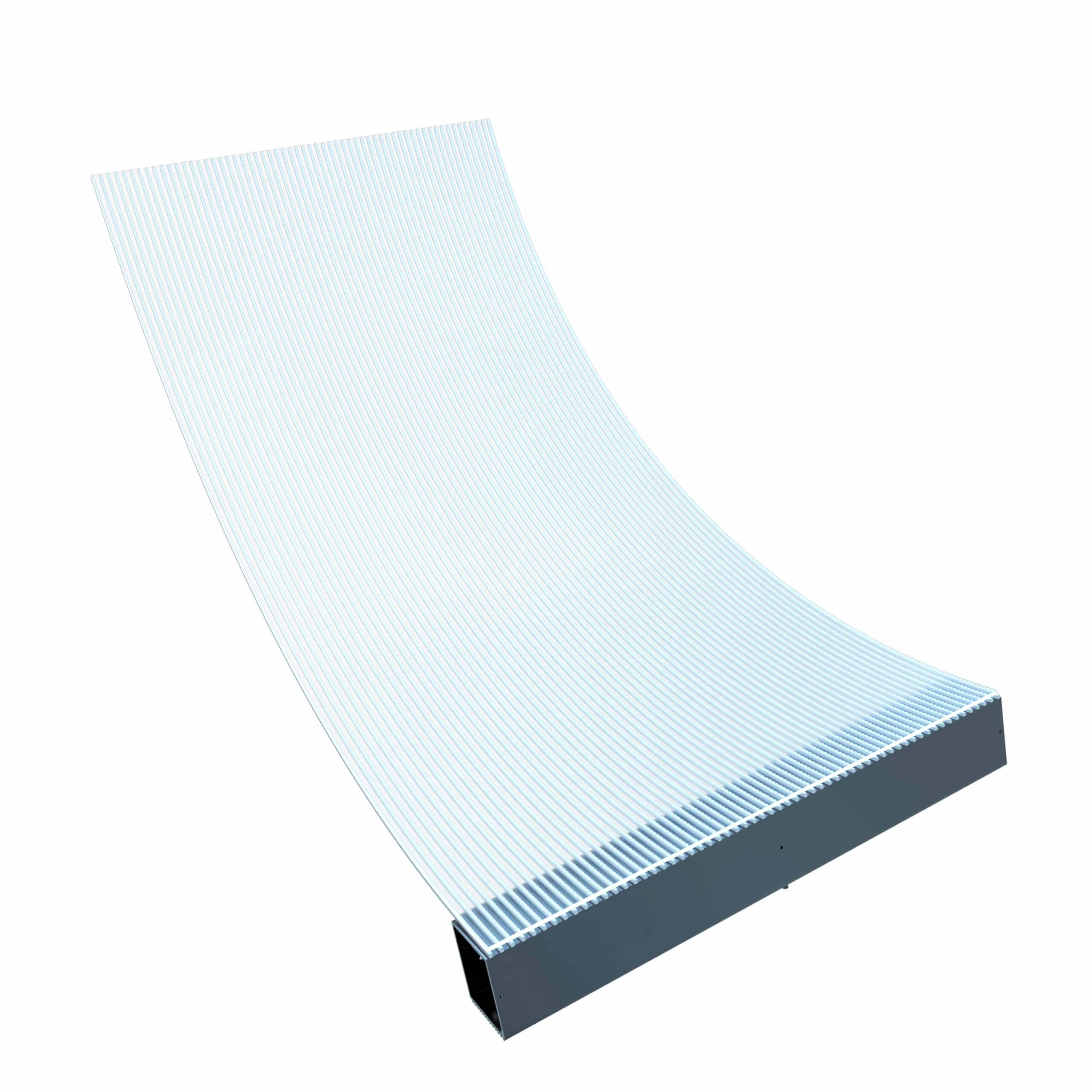

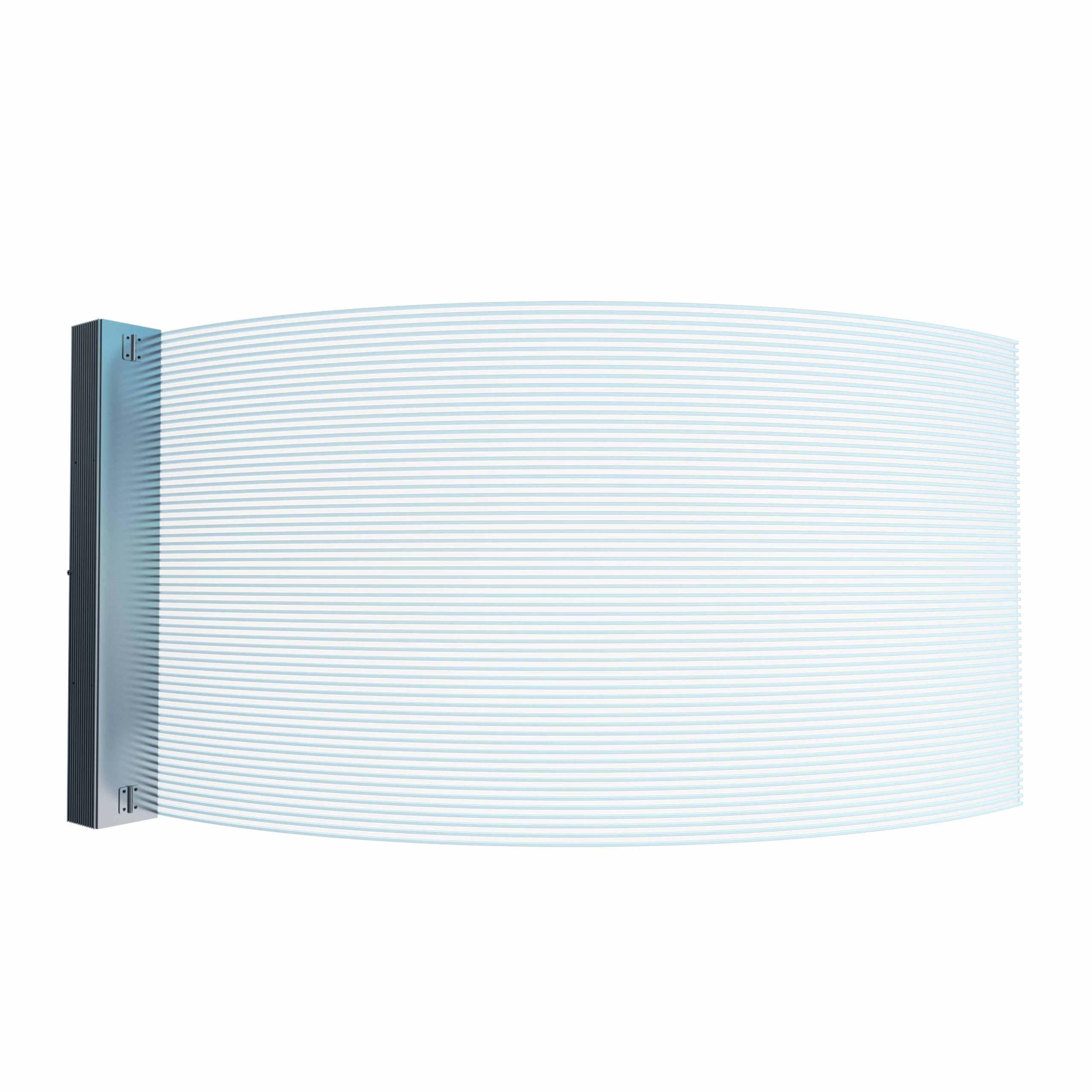

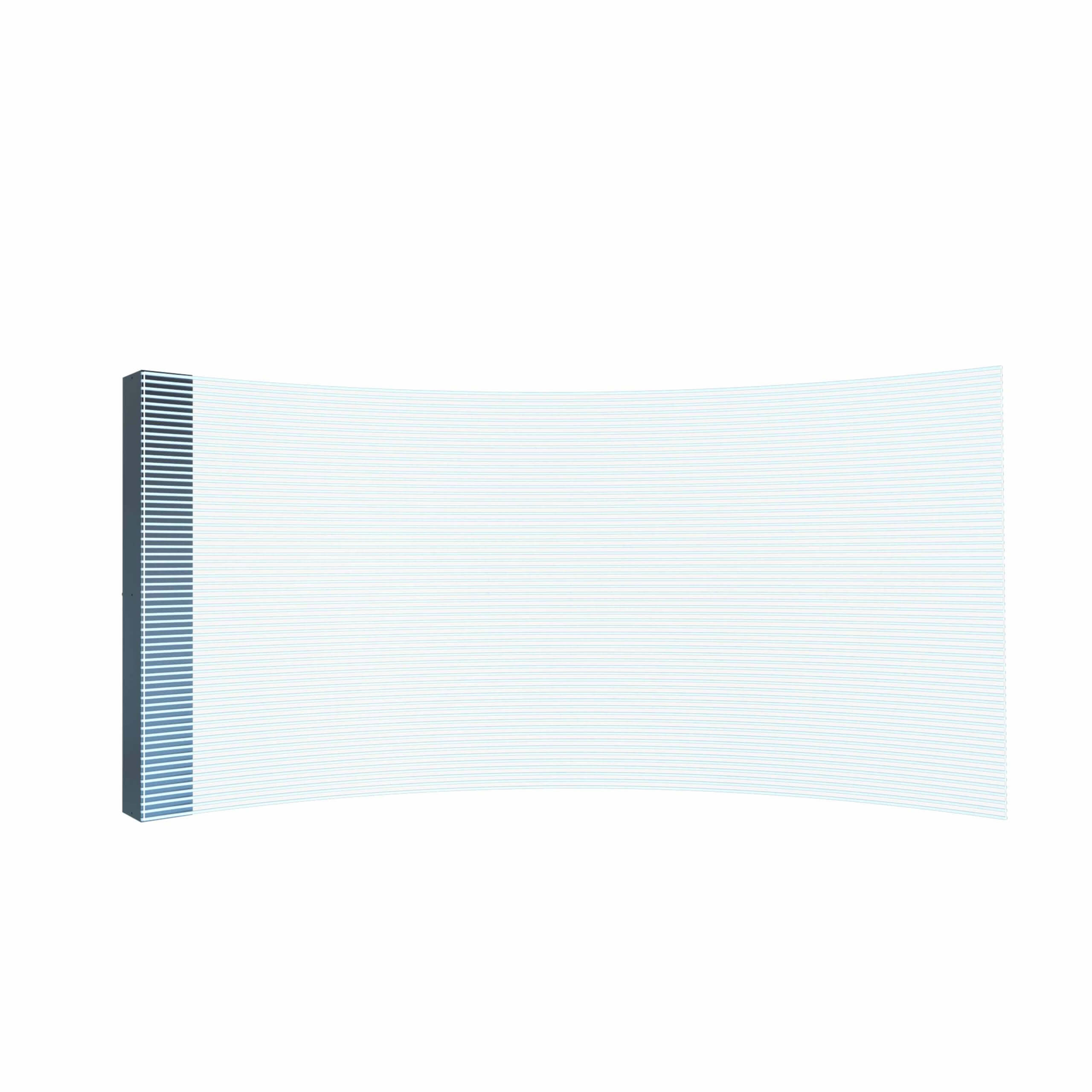

An innovative product that can be trimmed to any desired size, cut to any length, and bent in any shape. Its flexible and adhesive characteristics enable easy application on glass surfaces, providing endless possibilities for customization.
| Classification | Name | Demand | |||
| Technical parameter | Pixel Pitch(mm) | AFH-P4-8 | AFH-P6.5 | AFH-P10 | AFH-P20 |
| Pixel Density（PX/㎡） | 31250 | 23668 | 10000 | 2500 | |
| LED Packing Type | SMD2121 | SMD2121 | SMD2121 | SMD2121 | |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| Module Size（mm） | 960*256 | 962*208 | 960*320 | 960*320 | |
| Module Composition | 960*64 | 962*52 | 960*80 | 960*80 | |
| Module Flatness（mm） | ≤1mm | ≤1mm | ≤1mm | ≤1mm | |
| Module Resolution（Pixel） | 240*8 | 148*8 | 96*8 | 48*4 | |
| Scanning Mode(S) | Static | Static | Static | Static | |
| Transparent rate | ≥60% | ≥60% | ≥60% | ≥60% | |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | |
| Frame Rate(Hz) | 60 Frames/sec | 60 Frames/sec | 60 Frames/sec | 60 Frames/sec | |
| Gray Level | 12-16 | 12-16 | 12-16 | 12-16 | |
| Material | Acrylic | Acrylic | Acrylic | Acrylic | |
| Weight(KG/㎡) | 6 | 6 | 6 | 6 | |
| Size(mm) | 960*512 | 962*416 | 960*640 | 960*640 | |
| Thickness（mm） | 6mm | 6mm | 6mm | 6mm | |
| IP Rate | IP30 | IP30 | IP30 | IP30 | |
| Maintenance Mode | Rear Installation and rear maintenance | Rear Installation and rear maintenance | Rear Installation and rear maintenance | Rear Installation and rear maintenance | |
| Optical characteristic | Signal source | Supports 12bit input | Supports 12bit input | Supports 12bit input | Supports 12bit input |
| Brightness(nits) | ≥4000 | ≥5000 | ≥5000 | ≥3000 | |
| Brightness Rating | 0-255 | 0-255 | 0-255 | 0-255 | |
| View Angle | Horizontal≥150°,vertical≥150° | Horizontal≥150°,vertical≥150° | Horizontal≥150°,vertical≥150° | Horizontal≥150°,vertical≥150° | |
| Contrast Ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 | |
| Electrical parameter | Voltage(V) | DC5 | DC5 | DC5 | DC5 |
| Input Voltage(V) | AC95-240 | AC95-240 | AC95-240 | AC95-240 | |
| Maximum Power Consumption(W/㎡) | 800 | 800 | 800 | 800 | |
| Average Power Consumption(W/㎡) | 300 | 300 | 300 | 300 | |
| Usage parameter | Typical LED Lifetime(H) | 100000 | 100000 | 100000 | 100000 |
| Working Temperature(°C) | -20-+65 | -20-+65 | -20-+65 | -20-+65 | |
| Working Humidity(RH) | 10%-90% | 10%-90% | 10%-90% | 10%-90% | |
| Mounting | With lifting mounting/Fixed mounting/Surface mounting | With lifting mounting/Fixed mounting/Surface mounting | With lifting mounting/Fixed mounting/Surface mounting | With lifting mounting/Fixed mounting/Surface mounting | |
| Composition | With high transparent,high temperature resistant flame retardant PC | With high transparent,high temperature resistant flame retardant PC | With high transparent,high temperature resistant flame retardant PC | With high transparent,high temperature resistant flame retardant PC | |
| Connection | Hard connection | Hard connection | Hard connection | Hard connection | |
| Certification | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | |
