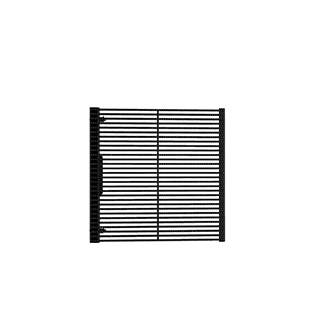

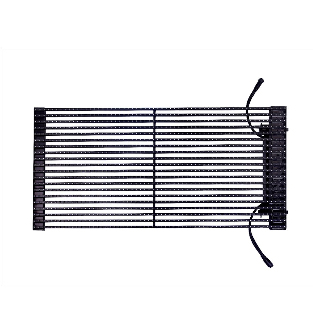

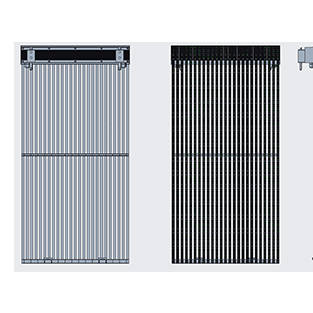

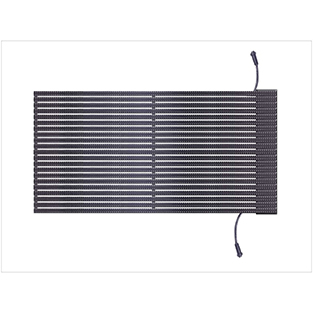

This ultra-lightweight (8-12kg/m²) LED mesh panel delivers 65% transparency with IP66 waterproof protection, while maintaining exceptional energy efficiency at just 240W/m² average power consumption.
Widely used in buliding facades, building roofs, etc.
| Classification | Name | Demand | |||||
| Technical parameter | Pixel Pitch（mm） | ATT-P7.8-15 | ATT-P15-15 | ATT-P15-31 | ATT-P20-20 | ATT-P31-31 | ATT-P20-50 |
| LED Packing Type | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| IC | dp 3265s | dp 3265s | dp 3265s | dp 3265s | dp 3265s | dp 3265s | |
| Cabinet Rrsolution | 128*64 | 64*64 | 64*32 | 50*50 | 32*32 | 50*20 | |
| Scanning Mode（S) | 4s | 1s | 1s | 1s | 1s | 1s | |
| Driving Mode | Constant current,static operation | Constant current,static operation | Constant current,static operation | Constant current,static operation | Constant current,static operation | Constant current,static operation | |
| Transparency rate | 65% | 65% | 65% | 65% | 65% | 65% | |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | |
| Frame Rate(Hz) | 60 | 60 | 60 | 60 | 60 | 60 | |
| Gray Level | 14 | 14 | 14 | 14 | 14 | 14 | |
| Heat dissipation method | Strengthened natural convection structure | Strengthened natural convection structure | Strengthened natural convection structure | Strengthened natural convection structure | Strengthened natural convection structure | Strengthened natural convection structure | |
| Light bar material | Stretched aluminum material | Stretched aluminum material | Stretched aluminum material | Stretched aluminum material | Stretched aluminum material | Stretched aluminum material | |
| Cabinet Weight（KG/PCS） | 8 | 8 | 8 | 8 | 8 | 8 | |
| Module Size（mm） | 500*1000 | 500*1000 | 500*1000 | 500*1000 | 500*1000 | 500*1000 | |
| Cabinet Thickness(mm) | 67 | 67 | 67 | 67 | 67 | 67 | |
| IP Rate | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | |
| Maintenance Mode | Front or rear maintenance | Front or rear maintenance | Front or rear maintenance | Front or rear maintenance | Front or rear maintenance | Front or rear maintenance | |
| Optical characteristic | Brightness(nits) | 5000-10000 | 5500 | 4500 | 3800 | 6000 | 2000 |
| Color Temperature(K) | 6500-9300 | 6500-9300 | 6500-9300 | 6500-9300 | 6500-9300 | 6500-9300 | |
| View Angle | Horizontal≥110°,vertical≥110° | Horizontal≥110°,vertical≥110° | Horizontal≥110°,vertical≥110° | Horizontal≥110°,vertical≥110° | Horizontal≥110°,vertical≥110° | Horizontal≥110°,vertical≥110° | |
| Display mode | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | |
| Optimum viewing distance | 7.8-500m | 15-500m | 20-500m | 20-500m | 30-500m | 30-500m | |
| Contrast Ratio | 1600:1 | 1600:1 | 1600:1 | 1600:1 | 1600:1 | 1600:1 | |
| Electrical parameter | Input Voltage(V) | 85-250 | 85-250 | 85-250 | 85-250 | 85-250 | 85-250 |
| Maximum Power Consumption(W/㎡) | 800 | 800 | 800 | 800 | 800 | 800 | |
| Average Power Consumption(W/㎡) | 240 | 240 | 240 | 240 | 240 | 240 | |
| Usage parameter | Typical LED Lifetime(H) | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 |
| Data port | DVI/HDMI | DVI/HDMI | DVI/HDMI | DVI/HDMI | DVI/HDMI | DVI/HDMI | |
| Control mode | Synchronized control | Synchronized control | Synchronized control | Synchronized control | Synchronized control | Synchronized control | |
| Driver devices | ICN | ICN | ICN | ICN | ICN | ICN | |
| Structure | Single-row,single-column, vertical arrangement | Single-row,single-column, vertical arrangement | Single-row,single-column, vertical arrangement | Single-row,single-column, vertical arrangement | Single-row,single-column, vertical arrangement | Single-row,single-column, vertical arrangement | |
| Working Temperature（°C） | -40-+85 | -40-+85 | -40-+85 | -40-+85 | -40-+85 | -40-+85 | |
| Storage Temperature（°C） | -55-+120 | -55-+120 | -55-+120 | -55-+120 | -55-+120 | -55-+120 | |
| Working Humidity(RH) | 10-90% | 10-90% | 10-90% | 10-90% | 10-90% | 10-90% | |
| Certification | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | |
