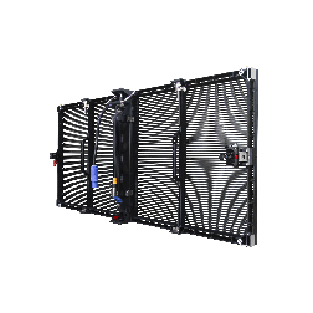

A Series-ATO-Outdoor Transparent LED Screen
A Series-ATO-Outdoor Transparent LED Screen
A Series-ATO-Outdoor Transparent LED Screen
A Series-ATO-Outdoor Transparent LED Screen
A Series-ATO-Outdoor Transparent LED Screen
Description

This IP66-rated transparent screen features fully sealed, impact-resistant LEDs for superior durability. The ultra-lightweight design installs directly on glass curtain walls without structural modifications.
Energy-efficient operation eliminates cooling systems, while the modular construction enables easy stacking and hanging with minimal maintenance – perfect for premium outdoor installations.

Chat with us Leave a message
Applicable Scenarios：

Widely used in all outdoor scenarios.

Product Parameters:
Classification Name Demand
Technical parameter Pixel Pitch（mm） ATO-P3.9-7.8 ATO-P7.8-7.8
LED Packing Type SMD1921 SMD1921
Pixel Composition 1R1G1B 1R1G1B
Module Size（mm） 500*125 500*125
Module composition 8 8
Module flatness（mm） 1 1
Module Resolution(Pixel) 128*16 64*16
Display Resolution(㎡) 256*128 128*128
Pixel Density（Pixel/㎡） 32768 16384
Cabinet Resolution（Pixel） 256*64 128*64
Scanning Mode（S） 8S 8S
Refresh Rate(Hz) 3840 3840
Frame Rate(Hz) 60 60
Gray Level 65536 65536
Permeability 55% 55%
Cabinet Material Die-cast aluminum Die-cast aluminum
Cabinet Size（mm） 1000*500 1000*500
Cabinet Thickness（mm） 86 86
Cabinet Weight（KG/PCS） 7.5 7.5
IP Rate IP66 IP66
Maintenance Mode Rear maintenance Rear maintenance
Optical characteristic Brightness（nits） 4000-4500 4000-4500
View Angle Horizontal≥120°,vertical≥120° Horizontal≥120°,vertical≥120°
Contrast Ratio 2000:1 2000:1
Electrical parameter Power parameters >90% efficiency PFC wide voltage 100-240VAC DC5V 80A >90% efficiency PFC wide voltage 100-240VAC DC5V 80A
Elimination circuit equipped equipped
Module Voltage(V) DC4.6-5V DC4.6-5V
Maximum Power Consumption(W/㎡) 800 600
Average Power Consumption(W/㎡) 260 260
Usage parameter Typical LED Lifetime(H) 100000(light up to completely off) 100000(light up to completely off)
Display interface DVI/HDMI/DP/network cable/USB/WIFI/Internet cloud control DVI/HDMI/DP/network cable/USB/WIFI/Internet cloud control
Operating Environment(°C/%RH) -20-+50,10%-90%,non-condensing -20-+50,10%-90%,non-condensing
