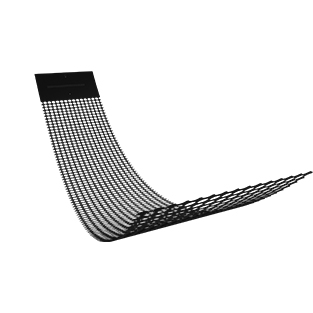

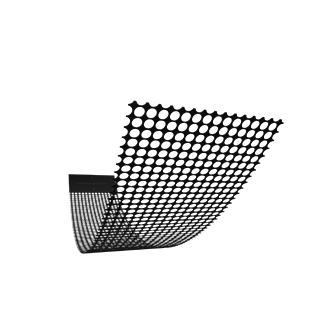

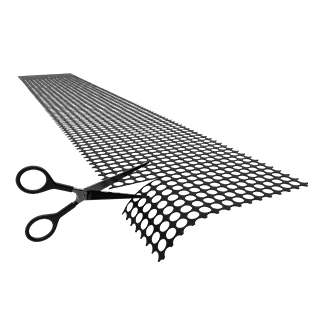

This flexible, cuttable film adheres to both sides of glass for ultra-simple installation. The seamless invisible solution delivers HD visuals with 9000:1 contrast, 90% transparency, and 3000cd/m² brightness – maintaining vibrant colors even in direct sunlight.
Widely used in commercial complexes (glass curtain walls, atriums, railings, display windows, elevators), brand chains (tea shops, bakeries, jewelry stores, banks), advertising media (airports, rail stations, subways), and performing arts (bars, stage design, variety shows)and so on.
| Classification | Name | Demand | |
| Technical parameter | Pixel Pitch(mm) | P3.91 | P6.25 |
| LED Packing Type | SMD black lamp 1717(lamp drive all-in-one package) | SMD black lamp 2121(lamp drive all-in-one package) | |
| Pixel Composition | 1R1G1B | 1R1G1B | |
| Module Size（mm） | 1000*250/1500*250 | 1000*250/1500*250 | |
| Module Thickness（mm) | 3 | 3 | |
| Module Composition | 1 | 1 | |
| Module Flatness（mm） | 0.1 | 0.1 | |
| Module Resolution（Pixel） | 256*64/384*64 | 160*40/240*40 | |
| Scanning Mode(S) | Constant current static | Constant current static | |
| Refresh Rate（Hz） | ≥3840 | ≥3840 | |
| Frame Rate（Hz） | About 60 | About 60 | |
| Gray Level | 16 | 16 | |
| Permeability | 92 | 92 | |
| Module Material | PCB | PCB | |
| Cabinet Weight（KG/㎡） | 6 | 6 | |
| Module Weight（KG/㎡） | 1.5 | 1.5 | |
| IP Rate | IP 45 | IP 45 | |
| Maintenance Mode | Front and rear installation and maintenance | Front and rear installation and maintenance | |
| Optical characteristic | Brightness（nits） | 3000/1500 | 3000/1500 |
| Display mode | 1920*1080 | 1920*1080 | |
| View Angle | Horizontal≥140°,vertical≥120° | Horizontal≥140°,vertical≥120° | |
| The Best View(Medium Size) | 10-3000 | 10-3000 | |
| Contrast Ratio | 9000:1 | 9000:1 | |
| Electrical parameter | Input Voltage | AC 100-240V,50/60hz | AC 100-240V,50/60hz |
| Maximum Power Consumption(W/㎡) | 800 | 800 | |
| Average Power Consumption(W/㎡) | 200 | 200 | |
| Typical LED Lifetime(H) | ≥100000 | ≥100000 | |
| Heat dissipation | Structurally reinforced natural convection（no air conditioning and fan） | Structurally reinforced natural convection（no air conditioning and fan） | |
| Usage parameter | Operating Environment(°C) | -20~+60 | -20~+60 |
| Storage Environment(°C) | -55~+100 | -55~+100 | |
| Working Humidity（RH） | 10-90% | 10-90% | |
| Control mode | Same-synchronous control | Same-synchronous control | |
| Control distance | 100 meters（network cable no relay） 500 meters（multi-mode fiber） 10 kilometers（single-mode fiber） |
100 meters（network cable no relay） 500 meters（multi-mode fiber） 10 kilometers（single-mode fiber） |
|
| Installation Form | Back mounting or fixed installation | Back mounting or fixed installation | |
| Disassembly speed | Quick disassembly | Quick disassembly | |
| Connector | Board to board hard link | Board to board hard link | |
| Certification | CCC,FCC,CE,RoHS | CCC,FCC,CE,RoHS | |
