Description

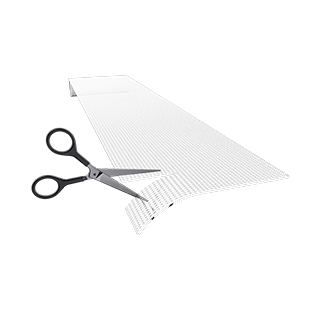

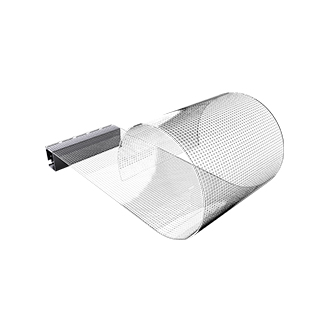

This high-transparency PET film display (only 3mm thick,3.5kg/m²) seamlessly blends with glass when powered off. Supports custom cutting to any shape/size with 140° ultra-wide viewing angles. The completely hidden power supply ensures safety, allowing quick adhesive installation directly onto glass surfaces.

Chat with us Leave a message
Applicable Scenarios：

Widely used in various types of commercial complexes, such as sightseeing elevators, curtain wall facades, branded chain stores, tea and dining establishments, bakeries, advertising media, transportation hubs like high-speed railway stations and subways, as well as stage design, beautiful scenery, bars and so on.

Product Parameters:
Classification Name Demand
Technical parameter Pixel Pitch(mm) AFS-P4 AFS-P5 AFS-P4-8 AFS-P6 AFS-P8 AFS-P10 AFS-P20
Pixel Density（PX/㎡） 62500 40000 31250 27556 15625 10000 2500
LED Packing Type SMD1515(light drive in one) SMD1515(light drive in one) SMD2121(light drive in one) SMD2121(light drive in one) SMD2121(light drive in one) SMD2121(light drive in one) SMD2121(light drive in one)
Pixel Composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Size（mm） 1000*240 1000*240 1000*240 1000*240 1000*240 1000*240 1000*240
Module Flatness（mm） ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1
Module Resolution（Pixel） 250*60 200*48 250*30 166*40 125*30 100*24 50*12
Pixel Resolution 250*250/㎡ 200*200/㎡ 250*125/㎡ 166*166/㎡ 125*125/㎡ 100*100/㎡ 50*50/㎡
Scannning Mode(S) Static Scan Static Scan Static Scan Static Scan Static Scan Static Scan Static Scan
Refresh Rate（Hz） ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Frame Rate（Hz） ≥60 ≥60 ≥60 ≥60 ≥60 ≥60 ≥60
Gray Level 16 16 16 16 16 16 16
Permeability ≥85% ≥85% ≥85% ≥85% ≥85% ≥90% ≥93%
Module Material PET transparent film + gule PET transparent film + gule PET transparent film + gule PET transparent film + gule PET transparent film + gule PET transparent film + gule PET transparent film + gule
Module Weight（KG/㎡） ≤9.5 ≤9.5 ≤9.5 ≤9.5 ≤9.5 ≤9.5 ≤9.5
Module Thickness（mm) 3 3 3 3 3 3 3
wiring mode Internal wiring(clean back) Internal wiring(clean back) Internal wiring(clean back) Internal wiring(clean back) Internal wiring(clean back) Internal wiring(clean back) Internal wiring(clean back)
IP Rate IP30 IP30 IP30 IP30 IP30 IP30 IP30
Maintenance  Mode Front Maintenance Front Maintenance Front Maintenance Front Maintenance Front Maintenance Front Maintenance Front Maintenance
Input signal DVI VGA,composite video DVI VGA,composite video DVI VGA,composite video DVI VGA,composite video DVI VGA,composite video DVI VGA,composite video DVI VGA,composite video
Optical characteristic Brightness（nits） ≥1500 ≥1500 ≥2000-2500 ≥2000-2500 ≥2000-2500 ≥2500-3500 ≥1200
Color Temperature(K) 3200-8500（adjustable） 3200-8500（adjustable） 3200-8500（adjustable） 3200-8500（adjustable） 3200-8500（adjustable） 3200-8500（adjustable） 3200-8500（adjustable）
View Angle Horizontal≥140°,vertical≥140° Horizontal≥140°,vertical≥140° Horizontal≥140°,vertical≥140° Horizontal≥140°,vertical≥140° Horizontal≥140°,vertical≥140° Horizontal≥140°,vertical≥140° Horizontal≥140°,vertical≥140°
Electrical parameter Contrast Ratio 3000:1 3000:1 3000:1 6000:1 6000:1 6000:1 6000:1
Current（A） DC 0-32A DC 0-32A DC 0-32A DC 0-32A DC 0-32A DC 0-32A DC 0-32A
Input Voltage AC220V±10%；50-60HZ，Optional wide voltage 110V and 9-36V AC220V±10%；50-60HZ，Optional wide voltage 110V and 9-36V AC220V±10%；50-60HZ，Optional wide voltage 110V and 9-36V AC220V±10%；50-60HZ，Optional wide voltage 110V and 9-36V AC220V±10%；50-60HZ，Optional wide voltage 110V and 9-36V AC220V±10%；50-60HZ，Optional wide voltage 110V and 9-36V AC220V±10%；50-60HZ，Optional wide voltage 110V and 9-36V
Maximum Power Consumption(W/㎡) 720 720 720 720 720 720 720
Average Power Consumption(W/㎡) 240(depending on the video source) 240(depending on the video source) 240(depending on the video source) 240(depending on the video source) 240(depending on the video source) 240(depending on the video source) 240(depending on the video source)
Optical characteristic Typical LED Lifetime(H) 100000 100000 100000 100000 100000 100000 100000
Working Temperature(°C) 0-50 0-50 0-50 0-50 0-50 0-50 0-50
Connector RJ45 network cable interface RJ45 network cable interface RJ45 network cable interface RJ45 network cable interface RJ45 network cable interface RJ45 network cable interface RJ45 network cable interface
Certification 3C,CE,FCC,RoHS 3C,CE,FCC,RoHS 3C,CE,FCC,RoHS 3C,CE,FCC,RoHS 3C,CE,FCC,RoHS 3C,CE,FCC,RoHS 3C,CE,FCC,RoHS
