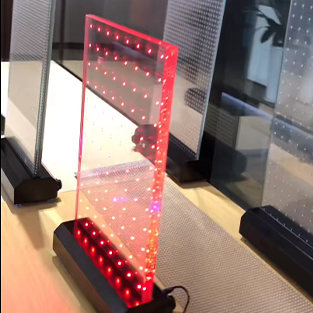

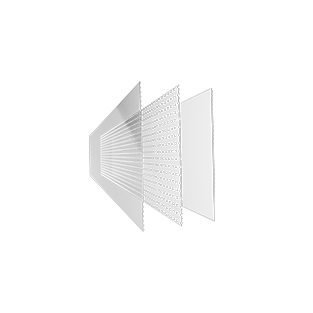

This innovative product features fully tempered glass construction ensuring exceptional reliability and safety. When broken, it fragments into harmless honeycomb-shaped particles. Offering 3-5x greater impact/flexural strength than regular glass, it withstands extreme thermal fluctuations up to 300°C with triple the temperature resistance of standard glass.

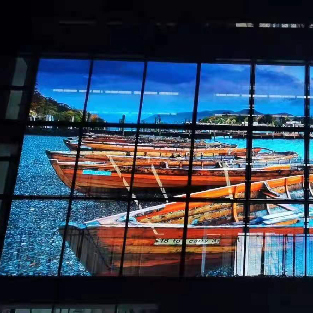

Widely used in various types of commercial complexes, such as sightseeing elevators, curtain wall facades, branded chain stores, tea and dining establishments, bakeries, advertising media, transportation hubs like high-speed railway stations and subways, as well as stage design, beautiful scenery, bars and so on.
| Name | Demand | |||
| Pixel Pitch(mm) | AFE-P8 | AFE-P10 | AFE-P16 | AFE-P32 |
| Pixel Density（PX/㎡） | 15625 | 10000 | 3844 | 961 |
| LED Packing Type | SMD 2121 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size（mm） | Customized | Customized | Customized | Customized |
| Module Size（mm） | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm |
| Module Flatness（mm） | Splicing between modules <0.1 | Splicing between module <0.1 | Splicing between module <0.1 | Splicing between module <0.1 |
| Module Resolution（Pixel） | 125*30 | 100*24 | 62*15 | 31*7 |
| Scannning Mode(S) | Static | Static | Static | Static |
| Transparency rate | ≥85% | ≥85% | ≥85% | ≥85% |
| Attenuation rate | Less than 0.05% within 2 years | Less than 0.05% within 2 years | Less than 0.05% within 2 years | Less than 0.05% within 2 years |
| Refresh Rate（Hz） | 3840 | 3840 | 3840 | 3840 |
| Frame Rate(Hz) | >60 | >60 | >60 | >60 |
| Gray Level | 16 | 16 | 16 | 16 |
| Cabinet Material | Physically tempered glass | Physically tempered glass | Physically tempered glass | Physically tempered glass |
| Cabinet Weight(KG/p㎡) | <35 | <35 | <35 | <35 |
| Cabinet Size（mm） | Customized | Customized | Customized | Customized |
| Cabinet Thickness(mm) | 15 | 15 | 15 | 15 |
| IP Rate | IP43 | IP43 | IP43 | IP43 |
| Maintenance Mode | dismantle glass | dismantle glass | dismantle glass | dismantle glass |
| Brightness（nits） | 4000 | 4000 | 4000 | 4000 |
| Color Temperature(K) | 3200-8500 | 3200-8500 | 3200-8500 | 3200-8500 |
| Minimum viewing distance（m） | 8 | 10 | 16 | 32 |
| View Angle | Horizontal≥140°,vertical≥140° | Horizontal≥140°,vertical≥140° | Horizontal≥140°,vertical≥140° | Horizontal≥140°,vertical≥140° |
| Contrast Ratio | 6000：1 | 6000：1 | 6000：1 | 6000：1 |
| Input Voltage | AC220V±10%；AC50HZ，Optional wide voltage 110V,9-36V | AC220V±10%；AC50HZ，Optional wide voltage 110V,9-36V | AC220V±10%；AC50HZ，Optional wide voltage 110V,9-36V | AC220V±10%；AC50HZ，Optional wide voltage 110V,9-36V |
| Maximum Power Consumption(W/㎡) | 800 | 800 | 800 | 800 |
| Average Power Consumption(W/㎡) | 260 | 260 | 260 | 260 |
| Typical LED Lifetime(H) | 100000 | 100000 | 100000 | 100000 |
| Constant Working Time(H) | >72 | >72 | >72 | >72 |
| Mean Time Betweenn Failures | Up to 10000 hours | Up to 10000 hours | Up to 10000 hours | Up to 10000 hours |
| Input | DVI/VGA/SDMI composite video | DVI/VGA/SDMI composite video | DVI/VGA/SDMI composite video | DVI/VGA/SDMI composite video |
| Working Temperature(°C) | -20~+50 | -20~+50 | -20~+50 | -20~+50 |
| Runaway point | 1/10000(in continuous use) | 1/10000(in continuous use) | 1/10000(in continuous use) | 1/10000(in continuous use) |
| Certification | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS |
