R Series -RXI Outdoor Rental 500X500mm
R Series -RXI Outdoor Rental 500X500mm
R Series -RXI Outdoor Rental 500X500mm
Description

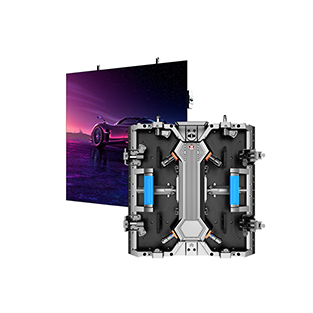

This outdoor LED rental cabinet features a compact, streamlined design, delivering high brightness (4000-4500nits) and a 5000:1 contrast ratio, optimized for outdoor applications. Its innovative structure enables quick single-person operation, with a detachable power rear cover for easy maintenance. The modular design integrates hardware program and calibration data storage for convenient access and servicing. Directly soldered signal connectors ensure stable transmission, while self-locking mechanisms simplify assembly, saving time and effort. Additionally, its sleek appearance and easily replaceable front panel enhance user experience.

Chat with us Leave a message
Applicable Scenarios：

Widely used in commercial performances, concerts, large-scale sports events, and more.

Product Parameters:
Classification Name Demand
Technical parameter Pixel Pitch(mm) RXI-2.604 RXI-2.976 RXI-3.91 RXI-4.81
Pixel Structure(CA) 1415 1921 1921 1921
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Size(mm) 250*250 250*250 250*250 250*250
Module composition 2*2 2*2 2*2 2*2
Module flatness(mm) ≦0.1 ≦0.1 ≦0.1 ≦0.1
Module Resolution(Pixel) 96*96 84*84 64*64 52*52
Module Thickness(mm) ≦85 ≦85 ≦85 ≦85
Scanning Mode(S) 1/24 1/21 1/16 1/7
Module connector Pin+ Female Heater Pin+ Female Heater Pin+ Female Heater Pin+ Female Heater
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840 ≥3840
Frame Rate(Hz) 60 60 60 60
Gray Level 14 bit 14 bit 14 bit 14 bit
Material Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum
Cabinet Weight(KG/PCS) ≦9.4 ≦9.4 ≦9.4 ≦9.4
Cabinet Size(mm) 500*500 500*500 500*500 500*500
IP Rate IP 65 IP 65 IP 65 IP 65
Maintenance Mode Front or rear maintenance Front or rear maintenance Front or rear maintenance Front or rear maintenance
Signal source Supports 12 bit input Supports 12 bit input Supports 12 bit input Supports 12 bit input
Optical characteristic Brightness(nits) 4000-4500 4000-4500 4000-4500 4000-4500
View Angle ≥165° ≥165° ≥165° ≥165°
Contrast Ratio 5000:1 5000:1 5000:1 5000:1
Electrical parameter Current(A) ≦15 ≦15 ≦15 ≦15
Input Voltage AC:100-240 AC:100-240 AC:100-240 AC:100-240
Maximum Power Consumption(W/㎡) ≦600 ≦600 ≦600 ≦600
Average Power Consumption(W/㎡) ≦300 ≦300 ≦300 ≦300
Power（W） 300 300 300 300
Usage parameter Lamp board correction factor storage Yes Yes Yes Yes
 Panel Demand 4 layers via holes 4 layers via holes 2 layers via holes 2 layers via holes
Connector Board-to-board hard connection Board-to-board hard connection Board-to-board hard connection Board-to-board hard connection
Certification FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS
