Description

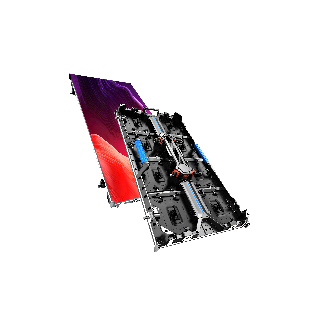

This indoor LED rental cabinet boasts a compact, streamlined design supporting 100% front/rear maintenance access for enhanced convenience. Delivering 5000:1 contrast ratio, it enables complete operation by a single person. The innovative magnetic mounting system with detachable power cover significantly improves maintenance efficiency. Modular design incorporates built-in hardware program and calibration data storage for easy management. Directly soldered signal connectors guarantee stable transmission, while self-locking mechanisms allow quick single-person assembly. Its aesthetic appearance combines with functional excellence, featuring easily replaceable panels.
Chat with us Leave a message
Applicable Scenarios：

Widely used in commercial performances, concerts, large-scale sports events, and more.

Product Parameters:
Classification Name Demand
Technical parameter Pixel Pitch(mm) RXI-1.838 RXI-1.953 RXI-2.604 RXI-2.976 RXI-3.91
Pixel Structure(CA) 1515 1515 1515 1515 2121
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Size(mm) 250*250 250*250 250*250 250*250 250*250
Module composition 2*4 2*4 2*4 2*4 2*4
Module flatness(mm) ≦0.1 ≦0.1 ≦0.1 ≦0.1 ≦0.1
Module Resolution(Pixel) 136*136 128*128 96*96 84*84 64*64
Module connector Pin+ Female Heater Pin+ Female Heater Pin+ Female Heater Pin+ Female Heater Pin+ Female Heater
Scanning Mode(S) 1/34 1/32 1/24 1/21 1/16
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Frame Rate(Hz) 60 60 60 60 60
Gray Level 14 bit 14 bit 14 bit 14 bit 14 bit
Cabinet Material Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum
Cabinet Weight(KG/PCS) ≦11.2 ≦11.2 ≦11.2 ≦11.2 ≦11.2
Cabinet Size(mm) 500*1000 500*1000 500*1000 500*1000 500*1000
Cabinet thickness(mm) ≦85 ≦85 ≦85 ≦85 ≦85
IP Rate IP 54 IP 54 IP 54 IP 54 IP 54
Maintenance Mode Front or rear maintenance Front or rear maintenance Front or rear maintenance Front or rear maintenance Front or rear maintenance
Signal source Supports 12 bit input Supports 12 bit input Supports 12 bit input Supports 12 bit input Supports 12 bit input
Optical characteristic Brightness(nits) 600-1000 600-1000 600-1000 600-1000 600-1000
View Angle ≥165° ≥165° ≥165° ≥165° ≥165°
Contrast Ratio 5000:1 5000:1 5000:1 5000:1 5000:1
Electrical parameter Current(A) ≦8 ≦8 ≦8 ≦8 ≦8
Input Voltage AC:100-240 AC:100-240 AC:100-240 AC:100-240 AC:100-240
Power（W） 200 W 200 W 200 W 200 W 200 W
Maximum Power Consumption(W/㎡) ≦600 ≦600 ≦600 ≦600 ≦600
Average Power Consumption(W/㎡) ≦300 ≦300 ≦300 ≦300 ≦300
Lamp board correction factor storage Yes Yes Yes Yes Yes
Usage parameter  Panel Demand 4 layers via holes 4 layers via holes 4 layers via holes 2 layers via holes 2 layers via holes
Certification FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS
