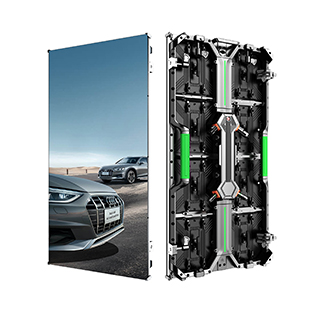

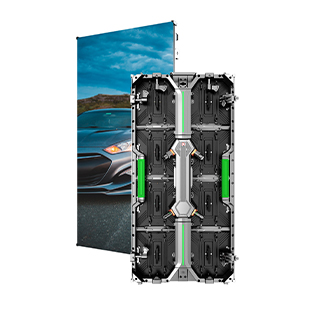

R Series- RX I Outdoor Rental Cabinet Size 500 X 1000 mm
R Series- RX I Outdoor Rental Cabinet Size 500 X 1000 mm
R Series- RX I Outdoor Rental Cabinet Size 500 X 1000 mm
R Series- RX I Outdoor Rental Cabinet Size 500 X 1000 mm
R Series- RX I Outdoor Rental Cabinet Size 500 X 1000 mm
Description
This outdoor LED rental cabinet features a compact, aerodynamic design with 4000-4500nits brightness and 5000:1 contrast ratio, specifically engineered for outdoor applications. The innovative dual-side maintenance system with magnetic mounting enables rapid installation and servicing.
Modular construction incorporates built-in hardware program storage and calibration data for plug-and-play convenience. Direct-soldered signal transfer boards ensure reliable transmission, while self-locking mechanisms optimize single-operator efficiency.
Detachable power covers and tool-free panel replacement combine aesthetic appeal with superior maintenance accessibility.
Chat with us Leave a message
Applicable Scenarios：

Widely used in commercial performances, concerts, large sporting events, etc.

Product Parameters:
Classification Name Demand
Technical parameter Pixel Pitch(mm) RXI-2.604 RXI-2.976 RXI-3.91 RXI-4.81
Pixel Structure(CA) 1415 1921 1921 1921
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Size(mm) 250*250 250*250 250*250 250*250
Module composition 2*4 2*4 2*4 2*4
Module flatness(mm) ≦0.1 ≦0.1 ≦0.1 ≦0.1
Module Resolution(Pixel) 96*96 84*84 64*64 52*52
Scanning Mode(S) 1/24 1/21 1/16 1/7
Module connector Pin+ Female Heater Pin+ Female Heater Pin+ Female Heater Pin+ Female Heater
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840 ≥3840
Frame Rate(Hz) 60 60 60 60
Gray Level 14 bit 14 bit 14 bit 14 bit
Cabinet Material Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum
Cabinet Weight(KG/PCS) ≦13.2 ≦13.2 ≦13.2 ≦13.2
Cabinet Size(mm) 500*1000 500*1000 500*1000 500*1000
IP Rate IP 65 IP 65 IP 65 IP 65
Maintenance Mode Front or rear maintenance Front or rear maintenance Front or rear maintenance Front or rear maintenance
Signal source Supports 12 bit input Supports 12 bit input Supports 12 bit input Supports 12 bit input
Optical characteristic Brightness(nits) 4000-4500 4000-4500 4000-4500 4000-4500
View Angle ≥165° ≥165° ≥165° ≥165°
Contrast Ratio 5000:1 5000:1 5000:1 5000:1
Electrical parameter Current(A) ≦15 ≦15 ≦15 ≦15
Input Voltage AC:100-240 AC:100-240 AC:100-240 AC:100-240
Maximum Power Consumption(W/㎡) ≦600 ≦600 ≦600 ≦600
Average Power Consumption(W/㎡) ≦300 ≦300 ≦300 ≦300
Power（W） 300 300 300 300
Lamp board correction factor storage Yes Yes Yes Yes
Usage parameter  Panel Demand 4 layers via holes
（via holes 中间有空格）		 4 layers via holes 4 layers via holes 2 layers via holes
Connector Waterproof Plug Waterproof Plug Waterproof Plug Waterproof Plug
Certification FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS
