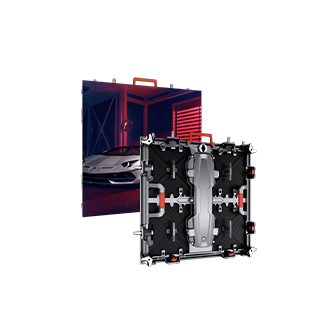

R Series-RHⅠ Outdoor Rental 500X500mm
R Series-RHⅠ Outdoor Rental 500X500mm
R Series-RHⅠ Outdoor Rental 500X500mm
Description
This outdoor LED rental display features a precision-engineered streamlined casing, delivering 4000-4500nits extreme brightness and 5000:1 contrast ratio for superior image quality under sunlight.
The innovative magnetic dual-access maintenance system with tool-free front panel and arc-ball positioning mechanism enables rapid deployment.
Modular architecture with built-in program storage, while military-grade signal stability is ensured by direct-soldered adapter boards. The unique self-suspending latch system allows complete single-person operation, complemented by detachable power modules for simplified field servicing.
Chat with us Leave a message
Applicable Scenarios：

Widely used in commercial displays, concerts, large-scale sporting events, and more.

Product Parameters:
Classification Name Demand
Technical parameter Pixel Pitch(mm) RXI-2.976 RXI-3.91 RXI-4.81
Pixel Structure(CA) 1921 1921 1921
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B
Module Size(mm) 250*250 250*250 250*250
Module composition 2*2 2*2 2*2
Module flatness(mm) ≦0.1 ≦0.1 ≦0.1
Module Resolution(Pixel) 84*84 64*64 52*52
Module Thickness(mm) ≦67 ≦67 ≦67
Module connector Pin+ Female Heater Pin+ Female Heater Pin+ Female Heater
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840
Frame Rate(Hz) 60 60 60
Gray Level 14 bit 14 bit 14 bit
Cabinet Size(mm) 500*500*67 500*500*67 500*500*67
IP Rate IP 65 IP 65 IP 65
Maintenance Mode Front or rear maintenance Front or rear maintenance Front or rear maintenance
Signal source Supports 10 bit input Supports 10 bit input Supports 10 bit input
Optical characteristic Brightness(nits) 5000-8000 5000-10000 5000-10000
View Angle ≥165° ≥165° ≥165°
Contrast Ratio 5000:1 5000:1 5000:1
Current(A) ≦15 ≦15 ≦15
Electrical parameter Input Voltage AC:100-240 AC:100-240 AC:100-240
Maximum Power Consumption(W/㎡) ≦800 ≦800 ≦800
Average Power Consumption(W/㎡) ≦300 ≦300 ≦300
Power（W） 300 300 300
Usage parameter Driving Mode Contant current driving Contant current driving Contant current driving
Lamp board correction factor storage Yes Yes Yes
 Panel Demand 4 layers via holes 2 layers via holes 2 layers via holes
Connector Waterproof Plug Waterproof Plug Waterproof Plug
Certification FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS
