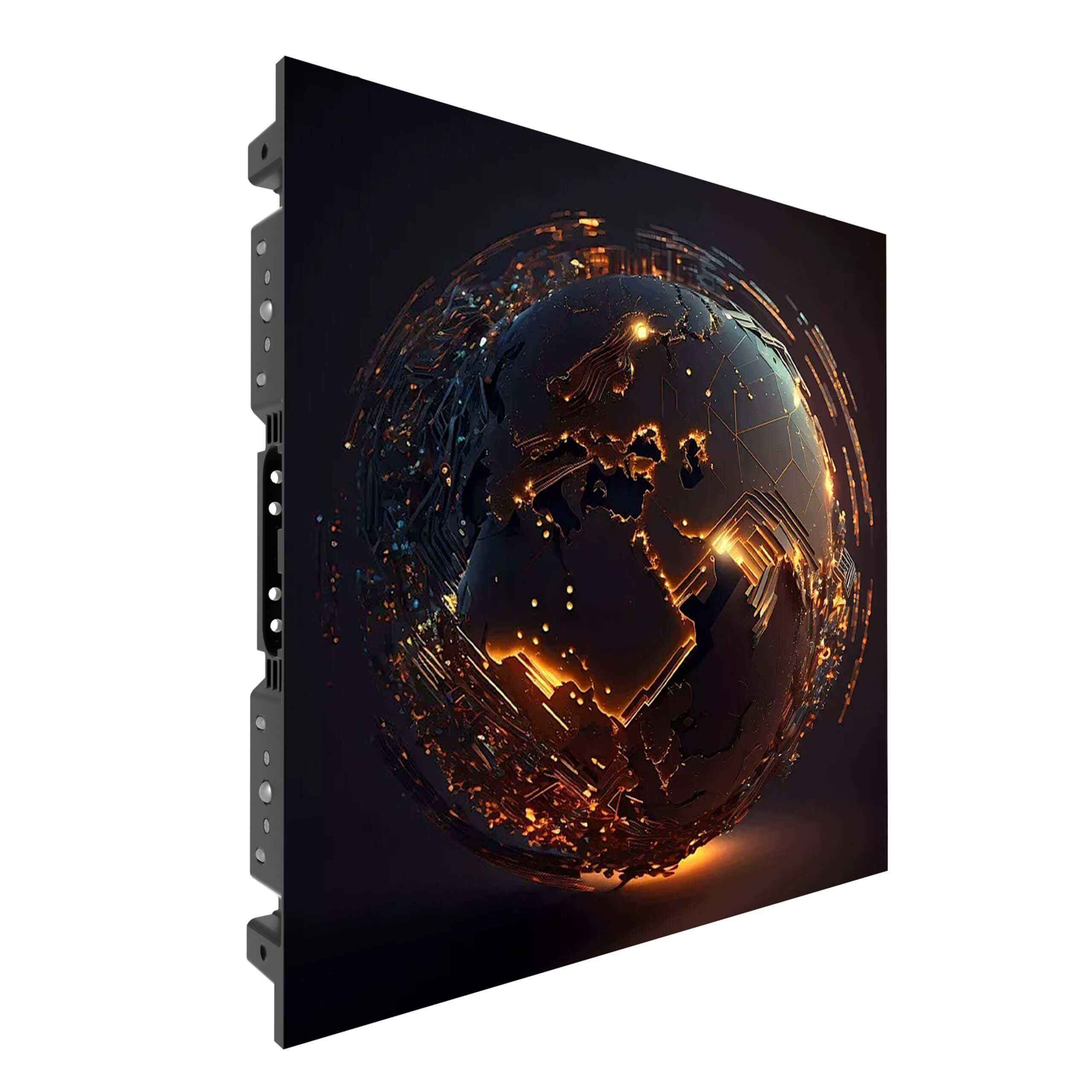

R Series-RCF-Indoor 500 X 500 LED Rental Display Product Spec
R Series-RCF-Indoor 500 X 500 LED Rental Display Product Spec
R Series-RCF-Indoor 500 X 500 LED Rental Display Product Spec
Description

This indoor LED rental screen features a streamlined design for quick single-person setup. High refresh rate ensures excellent image quality, while magnetic mounting allows easy front/rear maintenance.
Modules with built-in data storage are ready to use. Tool-free panel enables simple replacement, and soldered connectors guarantee stable signals. Arc-lock provides precise positioning, and self-hanging latches make assembly effortless. Removable power cover simplifies maintenance.

Chat with us Leave a message
Applicable Scenarios：

Widely used in commercial displays, concerts, large-scale sporting events, and more.

Product Parameters:
Classification Name Demand
Technical parameter Pixel Pitch(mm) RCF-1.953 RCF-2.604 RCF-2.976 RCF-3.91
Pixel Structure(CA) 1515 1515 1515 2121
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Size(mm) 250*250 250*250 250*250 250*250
Module composition 2*2 2*2 2*2 2*2
Module flatness(mm) ≦0.1 ≦0.1 ≦0.1 ≦0.1
Module Resolution(Pixel) 128*128 96*96 86*86 64*64
Module connector Pin+ Female Heater Pin+ Female Heater Pin+ Female Heater Pin+ Female Heater
Scanning Mode(S) 1/32 1/24 1/21 1/16
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840 ≥3840
Frame Rate(Hz) 60 60 60 60
Gray Level 14 bit 14 bit 14 bit 14 bit
Cabinet Material Carbon Plastic Carbon Plastic Carbon Plastic Carbon Plastic
Cabinet Weight(KG/PCS) ≦4.5 ≦4.5 ≦4.5 ≦4.5
Cabinet Size(mm) 500*500 500*500 500*500 500*500
Cabinet Thickness(mm) ≦65 ≦65 ≦65 ≦65
IP Rate IP 54 IP 54 IP 54 IP 54
Salt spray level 0 0 0 0
Fire peotection level T0 T0 T0 T0
Maintenance Mode Front or rear maintenance Front or rear maintenance Front or rear maintenance Front or rear maintenance
Signal source Supports 12 bit input Supports 12 bit input Supports 12 bit input Supports 12 bit input
Optical characteristic Brightness (nits) 600-1000 600-1000 600-1000 600-1000
View Angle ≥165° ≥165° ≥165° ≥165°
Contrast Ratio 5000:1 5000:1 5000:1 5000:1
Electrical parameter Current(A) ≦8 ≦8 ≦8 ≦8
Input Voltage AC:100-240 AC:100-240 AC:100-240 AC:100-240
Power（W） 200W 200W 200W 200W
Maximum Power Consumption(W/㎡) ≦600 ≦600 ≦600 ≦600
Average Power Consumption(W/㎡) ≦300 ≦300 ≦300 ≦300
Usage parameter Lamp board correction factor storage Yes Yes Yes Yes
 Panel Demand 4 layers via holes 4 layers via holes 2 layers via holes 2 layers via holes
Certification FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS FCC,3C,CE,TUV,RoHS
