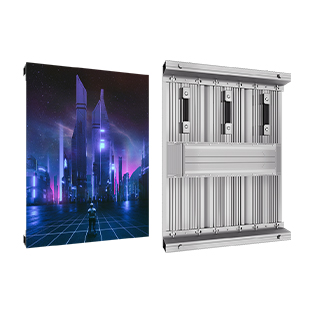

This IP67-rated aluminum cabinet features dual-access maintenance and advanced cooling fabric cover that eliminates AC requirements while improving 60% stability. The perfect balance of portability and high performance.
Widely used for exteriors of tall buildings, transportation platforms, advertising marketing, and so on.
| Classification | Name | Demand | |||||
| Technical Parameter | Pixel Pitch(mm) | FSO-P3 | FSO-P4 | FSO-P5 | FSO-P6.67 | FSO-P8 | FSO-P10 |
| Pixel Structure(CA) | 1415 | 1921 | 2727 | 2727 | 2727 | 2727 | |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| Module Size(mm) | 160*640 | 160*640 | 160*640 | 160*640 | 160*640 | 160*640 | |
| Module composition | 3*1 | 3*1 | 3*1 | 3*1 | 3*1 | 3*1 | |
| Module flatness(mm) | ≦0.1 | ≦0.1 | ≦0.1 | ≦0.1 | ≦0.1 | ≦0.1 | |
| Module Resolution(Pixel) | 52*208 | 40*160 | 32*128 | 24*96 | 20*80 | 16*64 | |
| Module Thickness(mm) | ≦25 | ≦25 | ≦25 | ≦25 | ≦25 | ≦25 | |
| Module connector | Pin Female Heater | Pin Female Heater | Pin Female Heater | Pin Female Heater | Pin Female Heater | Pin Female Heater | |
| Scanning Mode(S) | 1/13 | 1/10 | 1/8 | 1/6 | 1/4 | 1/2 | |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | |
| Frame Rate(Hz) | 60 | 60 | 60 | 60 | 60 | 60 | |
| Gray Level | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | |
| Material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | |
| Cabinet Weight(KG/PCS) | ≦8.8 | ≦8.8 | ≦8.8 | ≦8.8 | ≦8.8 | ≦8.8 | |
| Cabinet Size(mm) | 480*640 | 480*640 | 480*640 | 480*640 | 480*640 | 480*640 | |
| Cabinet Thickness(mm) | 76 | 76 | 76 | 76 | 76 | 76 | |
| IP Rate | IP 67 | IP 67 | IP 67 | IP 67 | IP 67 | IP 67 | |
| Maintenance Mode | Rear Maintenance | Front or Rear Maintenance | Front or Rear Maintenance | Front or Rear Maintenance | Front or Rear Maintenance | Front or Rear Maintenance | |
| Signal source | Supports 10 bit input | Supports 10 bit input | Supports 10 bit input | Supports 10 bit input | Supports 10 bit input | Supports 10 bit input | |
| Optical characteristic | Brightness(nits) | ≥6000 | ≥6000 | ≥6000 | ≥6000 | ≥6000 | ≥6000 |
| View Angle | Horizontal≥120° verticall≥140° |
Horizontal≥120° verticall≥140° |
Horizontal≥120° verticall≥140° |
Horizontal≥120° verticall≥140° |
Horizontal≥120° verticall≥140° |
Horizontal≥120° verticall≥140° |
|
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | |
| PCB Size(mm) | 160*320 | 160*320 | 160*320 | 160*320 | 160*320 | 160*320 | |
| Electrical parameter | Current(A) | ≦15 | ≦15 | ≦15 | ≦15 | ≦15 | ≦15 |
| Input Voltage | AC:100-240 | AC:100-240 | AC:100-240 | AC:100-240 | AC:100-240 | AC:100-240 | |
| Maximum Power Consumption(W/㎡) | ≦1200 | ≦1200 | ≦1200 | ≦1200 | ≦1200 | ≦1200 | |
| Average Power Consumption(W/㎡) | ≦450 | ≦450 | ≦450 | ≦450 | ≦450 | ≦450 | |
| Power（W） | 400 | 400 | 400 | 400 | 400 | 400 | |
| Usage parameter | Driving Mode | Constant Current Driving | Constant Current Driving | Constant Current Driving | Constant Current Driving | Constant Current Driving | Constant Current Driving |
| Lamp board correction factor storage | Yes | Yes | Yes | Yes | Yes | Yes | |
| Panel Demand | 4 layers via holes | 4 layers via holes | 4 layers via holes | 4 layers via holes | 4 layers via holes | 4 layers via holes | |
| Connector | Waterproof Plug | Waterproof Plug | Waterproof Plug | Waterproof Plug | Waterproof Plug | Waterproof Plug | |
| Certification | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | |
