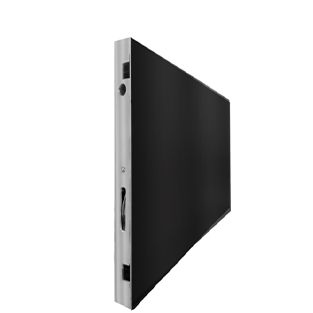

F Series FC COB 600X337.5mm
F Series FC COB 600X337.5mm
F Series FC COB 600X337.5mm
F Series FC COB 600X337.5mm
F Series FC COB 600X337.5mm
F Series FC COB 600X337.5mm
F Series FC COB 600X337.5mm
Description

COB LED display is an emerging display technology, COB stands for Chip-on-Board, COB technology has many advantages over the traditional SMD (Surface Mount Device) packaging method in the LED display field. Ultimate display with 10,000:1 contrast ratio and 22-bit native gray scale Extra wide viewing angle with excellent horizontal display, 160° horizontally and 160° vertically. Ultra-thin design COB LED screen adopts COB packaging technology, which can encapsulate the LED lamp beads in a very small space, thus realizing ultra-thin screen design.

Chat with us Leave a message
Applicable Scenarios：

Widely used in private cinemas, lecture halls, conference rooms, concert halls, traffic command halls, XR virtual shooting, data centers and other scenes.

Product Parameters:
Classification Name Demand
Technical parameter Pixel Pitch (mm) FC-P0. 9375 FC-P1. 25 FC-P1. 5625 FC-P1.875
Pixel Density (pixels/m²) 1137777 640000 409600 284444
LED Packaging Type COB COB COB COB
Pixel Composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Composition 8 8 8 8
Module Size (mm) 150*168. 75 150*168. 75 150*168. 75 150*168. 75
Module Flatness (mm) ≤0.5 ≤0.5 ≤0.5 ≤0.5
Module Resolution (Pixel) 160*180 120*135 96*108 80*90
Pixel Resolution (Pixel) 640*360 480*270 384*216 320*180
 Module surface technology Matte fog finish Matte fog finish Matte fog finish Matte fog finish
Scanning Mode (S) 45 45 54 40
Refresh Rate (Hz) ≥7680 ≥7680 ≥7680 ≥7680
Frame Rate (Hz) 60 60 60 60
Gray Level (bit) 13 13 13 13
Cabinet Material Die-cast aluminum Die-cast aluminum Die-cast aluminum Die-cast aluminum
Cabinet Weight (KG/PCS) ≤4.5 ≤4.5 ≤4.5 ≤4.5
Cabinet Size (mm) 600*337.5 600*337.5 600*337.5 600*337.5
Cabinet Thickness (mm) ≤29 ≤29 ≤29 ≤29
IP Rate IP54 (surface can be cleaned with water) IP54 (surface can be cleaned with water) IP54 (surface can be cleaned with water) IP54 (surface can be cleaned
with water)
Maintenance Mode Front maintenance Front maintenance Front maintenance Front maintenance
Optical characteristic Brightness (nits) 600 600 600 550
Color Temperature (K) 9300K (standard) 9300K (standard) 9300K (standard) 9300K (standard)
View Angle Horizontal≥ 160°,
vertical≥ 160°		 Horizontal≥ 160°,
vertical≥ 160°		 Horizontal≥ 160°,
vertical≥ 160°		 Horizontal≥ 160°,
vertical≥ 160°
Contrast Ratio 10000: 1 (without ambient light) 10000: 1 (without ambient light) 10000: 1 (without ambient light) 10000: 1 (without ambient
light)
Electrical parameter Circuit scheme Common cathode circuit Common cathode circuit Common cathode circuit Common cathode circuit
Input Voltage (V)  100~240V  100~240V  100~240V  100~240V
Maximum Power Consumption
(W/㎡)		  350W 320W 320W  320W
Average Power Consumption
(W/㎡)		  170W  170W  170W 170W
Flash correction storage Yes Yes Yes Yes
Usage parameter Operating Environment (°C/%RH) -10-40/10%-90% -10-40/10%-90% -10-40/10%-90% -10-40/10%-90%
Storage Environment (°C/%RH) -20-60/10%-90% -20-60/10%-90% -20-60/10%-90% -20-60/10%-90%
Certification 3C,EMC CLASS-A, ROHS 3C,EMC CLASS-A, ROHS 3C,EMC CLASS-A, ROHS 3C,EMC CLASS-A, ROHS
