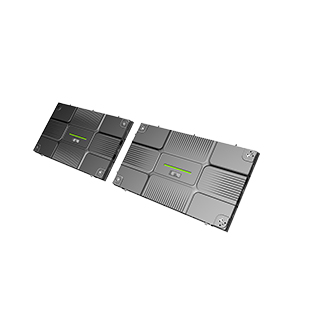

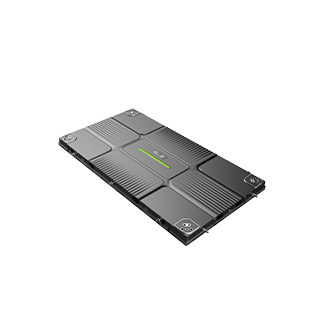

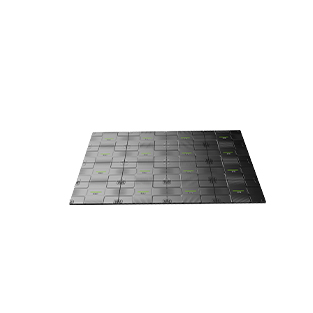

This ultra-thin 960×540mm LED display provides high-definition visuals and features a 16:9 seamless expansion ratio.
Its simplified installation system is faster to deploy than traditional LED displays, with streamlined components and no need for complex wiring, enabling efficient and neat operation.
Widely used for theater, conference halls, showrooms, live streaming rooms, education and so on.
| Classification | Name | Demand | |||
| Technical parameter |
Pixel Pitch (mm) | FSI-0.9375 | FSI-1.25 | FSI-1.5625 | FSI-1.875 |
| Pixel Structure(CA) | Four-in-one common cathode | 1010 common anode | 1010 or 1212 common anode | 1515 common anode | |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| Module Size (mm) | 150×168.75 | 300×168.75 | 300×168.75 | 300×168.75 | |
| Module Composition | 4*2 | 2*2 | 2*2 | 2*2 | |
| Module Flatness (mm) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | |
| Module Resolution (pixel) | 160*180 | 240*135 | 192*108 | 160*90 | |
| Module connector | Floating connector | Floating connector | Floating connector | Floating connector | |
| Scanning Mode(S) | 1/60 | 1/60 | 1/54 | 1/45 | |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | |
| Frame Rate(Hz) | 60 | 60 | 60 | 60 | |
| Gray Level | 14 bit | 14 bit | 14 bit | 14 bit | |
| Material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | |
| Cabinet Weight (Kg/pcs) | ≤4.5 | ≤4.5 | ≤4.5 | ≤4.5 | |
| Cabinet Size (mm) | 600×337.5×29 | 600×337.5×29 | 600×337.5×29 | 600×337.5×29 | |
| Cabinet Thickness (mm) | ≤29 | ≤29 | ≤29 | ≤29 | |
| IP Rate | IP45 | IP45 | IP45 | IP45 | |
| Maintenance Mode | Front maintenance | Front maintenance | Front maintenance | Front maintenance | |
| Signal Source | Supports 10bits Input | Supports 10bits Input | Supports 10bits Input | Supports 10bits Input | |
| Optical characteristic | Brightness (nits) | 600~800 | 600~800 | 600~800 | 600~800 |
| Viewing Angle | Horizontal≥160° verticall≥160° |
Horizontal≥160° verticall≥160° |
Horizontal≥160° verticall≥160° |
Horizontal≥160° verticall≥160° |
|
| Contrast Ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 | |
| Electrical parameter | Current (A) | ≤15 | ≤15 | ≤15 | ≤15 |
| Input Voltage | AC:100~240 | AC:100~240 | AC:100~240 | AC:100~240 | |
| Power | 200W | 200W | 200W | 200W | |
| Maximum Power Consumption (W/m²) | ≤600 | ≤600 | ≤600 | ≤600 | |
| Average Power Consumption (W/m²) | ≤350 | ≤350 | ≤350 | ≤350 | |
| Usage parameter | Driving Method | Constant current driving | Constant current driving | Constant current driving | Constant current driving |
| Lamp Board Correction Factor Storage | Yes | Yes | Yes | Yes | |
| Panel Demand | 4 layers with 1 level | 4 layers with 1 level | 4 layers via holes | 4 layers via holes | |
| Connector | Quick connection | Quick connection | Quick connection | Quick connection | |
| Certification | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | |
