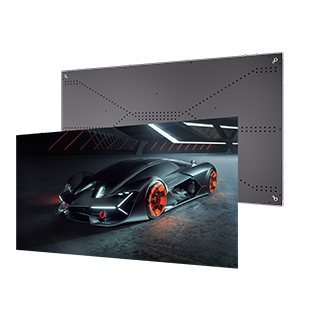

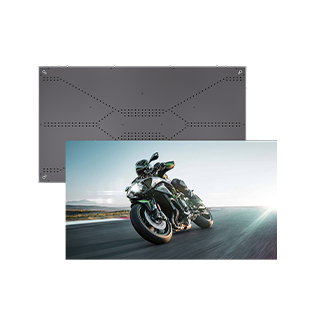

This ultra-thin 960×540mm LED display provides high-definition visuals and features a 16:9 seamless expansion ratio.

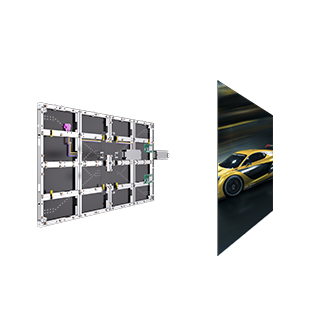

Its simplified installation system is faster to deploy than traditional LED displays, with streamlined components and no need for complex wiring, enabling efficient and neat operation.
Widely used for theater, conference halls,showrooms,live streaming rooms,education and so on.
| Classification | Name | Demand | |||
| Technical parameter | Pixel Pitch (mm) | FSI-1.25 | FSI-1.5 | FSI-1.875 | FSI-2 |
| Pixel Density (pixels/m²) | 640000 | 443556 | 285156 | 250000 | |
| LED Packaging Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| Cabinet Size(W*H*D)(mm) | 960*540*27.5 | 960*540*27.5 | 960*540*27.5 | 960*540*27.5 | |
| Cabinet Weight (KG) | ≤8.5 | ≤8.5 | ≤8.5 | ≤8.5 | |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | |
| Module Size(W*H)(mm) | 480*270 | 480*270 | 480*270 | 480*270 | |
| Module Resolution (Pixels) | 384*216 | 320*180 | 256*144 | 240*135 | |
| Maintenance Mode | Front maintenance | Front maintenance | Front maintenance | Front maintenance | |
| IP Rate | IP45 | IP45 | IP45 | IP45 | |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | |
| Frame Rate(Hz) | 60 | 60 | 60 | 60 | |
| Optical characteristic | View angle | ≥160° | ≥160° | ≥160° | ≥160° |
| Color Temperature(K) | 2000~10000(adjustable) | 2000~10000(adjustable) | 2000~10000(adjustable) | 2000~10000(adjustable) | |
| Brightness/Chromaticity Uniformity | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy | |
| White Balance Brightness(nits) | ≥800 | ≥800 | ≥800 | ≥800 | |
| Contrast Ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 | |
| Electrical parameter | AC Average Power Consumption(W/㎡) | ≤300 | ≤300 | ≤300 | ≤300 |
| AC Peak Power Consumption (W/㎡) |
≤600 | ≤600 | ≤600 | ≤600 | |
| Power(W) | 300 | 300 | 300 | 300 | |
| Operating Voltage(V) | AC:100-240 | AC:100-240 | AC:100-240 | AC:100-240 | |
| Usage parameter | Driving Method | Constant current drive | Constant current drive | Constant current drive | Constant current drive |
| Operating Environment(℃/%RH) | -10~+40/10~80, non-condensing |
-10~+40/10~80, non-condensing |
-10~+40/10~80, non-condensing |
-10~+40/10~80, non-condensing |
|
| Storage Environment(℃/%RH) | -20~+60/0~85, non-condensing |
-20~+60/0~85, non-condensing |
-20~+60/0~85, non-condensing |
-20~+60/0~85, non-condensing |
|
| Typical LED Lifetime(H) | 100000 | 100000 | 100000 | 100000 | |
| Certification | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | |
