A Series Indoor Soft Module 320X160mm
A Series Indoor Soft Module 320X160mm
A Series Indoor Soft Module 320X160mm
A Series Indoor Soft Module 320X160mm
A Series Indoor Soft Module 320X160mm
A Series Indoor Soft Module 320X160mm
A Series Indoor Soft Module 320X160mm
A Series Indoor Soft Module 320X160mm
A Series Indoor Soft Module 320X160mm
Description

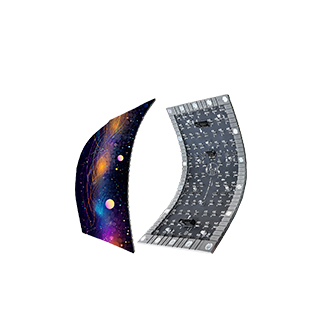

Our 320x160mm ultra-thin (5.25mm) flexible modules feature 5000:1 ultra-high contrast and high refresh rate with 16-bit grayscale.
With bendable design (509mm min. curvature) and 140° wide viewing angle, enabling magnetic seamless installation and convenient front maintenance.
Offering complete P1.25-P4 pixel pitch options for diversified display requirements.

Chat with us Leave a message

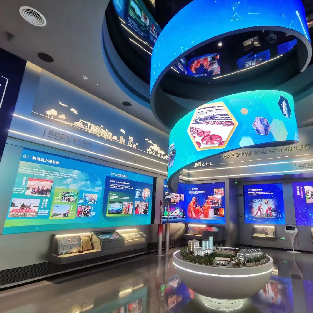

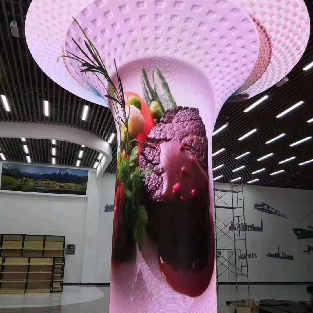

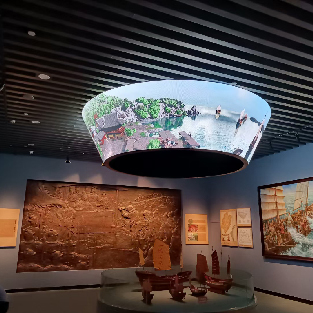

Applicable Scenarios：

These specifications are only applied to 320mmx160mm modules in the soft display series products, and the pixel pitch includes P1.25, P1.538, P1.86,P2,P2.5,P2.58,P3,P3.076,P4.

Product Parameters:
Classification Name Demand
Technical parameter Pixel Pitch(mm) AS-A-P1.25 AS-A-P1.538 AS-A-P1.86
Pixel Density(pixels/㎡) 640000 422500 288906
LED Packing Type SMD1010 SMD1212 SMD1212
Pixel Composition 1R1G1B 1R1G1B 1R1G1B
Module Size（mm） 320*160*5.25 320*160*5.25 320*160*5.25
Module Composition according to the cabinet size according to the cabinet size according to the cabinet size
 Module Flatness(mm) ≦0.5-1 ≦0.5-1 ≦0.5-1
Module Resolution(Pixel) 256*128 208*104 172*86
Module Material Silicone soft bottom case Silicone soft bottom case Silicone soft bottom case
Module Weight(KG/PCS) 0.334 0.33 0.316
Scanning Mode(S) 1/64 1/52 1/43
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840
Frame Rate(Hz) 60 60 60
Gray Level 16 16 16
Cabinet Material iron box iron box iron box
Cabinet Weight(KG/㎡) 30 30 30
Cabinet Size(mm) can be customized according to module size can be customized according to module size can be customized according to module size
Cabinet Flatness(mm) ≦0.3 ≦0.3 ≦0.3
IP Rate IP43 IP43 IP43
Maintenance Mode Front or rear installation and maintenance Front or rear installation and maintenance Front or rear installation and maintenance
Optical characteristic Brightness(nits) 800 800 800
Color Temperature(K) 3000-10000(adjustable) 3000-10000(adjustable) 3000-10000(adjustable)
View Angle ≥140° ≥140° ≥140°
Brightness Uniformity ≥97% ≥97% ≥97%
Contrast Ratio 5000:1 5000:1 5000:1
Electrical parameter Current(A) 5 5 5
Input Voltage(V) AC 110-220 AC 110-220 AC 110-220
Maximum Power Consumption (W/㎡) 490 490 440
Average Power Consumption (W/㎡) 165 165 150
Module Voltage (V) 5 5 5
Maximum Power Consumption of the module (W) 25 25 22.5
Typical LED Lifetime (H) 100000 100000 100000
Usage parameter Operating Environment (°C/ %RH) 20-85%,non-condensing 20-85%,non-condensing 20-85%,non-condensing
Storage Environment (°C/ %RH) 20-80%,non-condensing 20-80%,non-condensing 20-80%,non-condensing
Working Temperature (°C) -10-50 -10-50 -10-50
Storage Temperature (°C) -20-60 -20-60 -20-60
Signal interface method HUB 75 HUB 75 HUB 75
Certification RoHS,FCC,CE RoHS,FCC,CE RoHS,FCC,CE
Classification Name Demand
Technical parameter Pixel Pitch(mm) AS-A-P2 AS-A-P2.5 AS-A-P2.58 AS-A-P3.076 AS-A-P4
Pixel Density(pixels/㎡) 250000 160000 150156 105625 62500
LED Packing Type SMD1515 SMD1515 SMD2121 SMD1515 SMD2121
Pixel Composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Size（mm） 320*160*5.25 320*160*5.25 320*160*5.25 320*160*5.25 320*160*5.25
Module Composition according to the cabinet size according to the cabinet size according to the cabinet size according to the cabinet size according to the cabinet size
 Module Flatness(mm) ≦0.5-1 ≦0.5-1 ≦0.5-1 ≦0.5-1 ≦0.5-1
Module Resolution(Pixel) 160*80 128*64 124*62 104*52 80*40
Module Material Silicone soft shell Silicone soft shell Silicone soft shell Silicone soft shell Silicone soft shell
Module Weight(KG/PCS) 0.315 0.269 0.26 0.252 0.23
Scanning Mode(S) 1/40 1/32 ‘1/31 ’1/26 ‘1/20
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Frame Rate(Hz) 60 60 60 60 60
Gray Level 16 16 16 16 16
Cabinet Material iron box iron box iron box iron box iron box
Cabinet Weight(KG/㎡) 30 30 30 30 30
Cabinet Size(mm) can be customized according to module size can be customized according to module size can be customized according to module size can be customized according to module size can be customized according to module size
Cabinet Flatness(mm) ≦0.3 ≦0.3 ≦0.3 ≦0.3 ≦0.3
IP Rate IP43 IP43 IP43 IP43 IP43
Maintenance Mode Front or rear installation and maintenance Front or rear installation and maintenance Front or rear installation and maintenance Front or rear installation and maintenance Front or rear installation and maintenance
Optical characteristic Brightness(nits) 800 800 800 800 800
Color Temperature(K) 3000-10000(adjustable) 3000-10000(adjustable) 3000-10000(adjustable) 3000-10000(adjustable) 3000-10000(adjustable)
View Angle ≥140° ≥140° ≥140° ≥140° ≥140°
Brightness Uniformity ≥97% ≥97% ≥97% ≥97% ≥97%
Contrast Ratio 5000:1 5000:1 5000:1 5000:1 5000:1
Electrical parameter Current(A) 4.5 4.5 4.5 4.5 4.5
Input Voltage(V) AC 110-220 AC 110-220 AC 110-220 AC 110-220 AC 110-220
Maximum Power Consumption (W/㎡) 440 440 440 440 440
Average Power Consumption (W/㎡) 150 150 150 150 150
Module Voltage (V) 5 5 5 5 5
Maximum Power Consumption of the module (W) 22.5 22.5 22.5 22.5 22.5
Typical LED Lifetime (H) 100000 100000 100000 100000 100000
Usage parameter Operating Environment (°C/ %RH) 20-85%,non-condensing 20-85%,non-condensing 20-85%,non-condensing 20-85%,non-condensing 20-85%,non-condensing
Storage Environment (°C/ %RH) 20-80%,non-condensing 20-80%,non-condensing 20-80%,non-condensing 20-80%,non-condensing 20-80%,non-condensing
Working Temperature (°C) -10-50 -10-50 -10-50 -10-50 -10-50
Storage Temperature (°C) -20-60 -20-60 -20-60 -20-60 -20-60
Signal interface method HUB 75 HUB 75 HUB 75 HUB 75 HUB 75
Certification RoHS,FCC,CE RoHS,FCC,CE RoHS,FCC,CE RoHS,FCC,CE RoHS,FCC,CE
